Recovered a failed enterphone system by safely powering a damaged controller long enough to back up resident data before replacing and reconfiguring it.
A building’s Mircom TX3 enterphone failed, and the first risk was not just getting the hardware working again. The resident directory and system configuration also needed to be protected. Replacing the controller board without recovering the data could have turned a hardware failure into a larger setup and handoff problem.

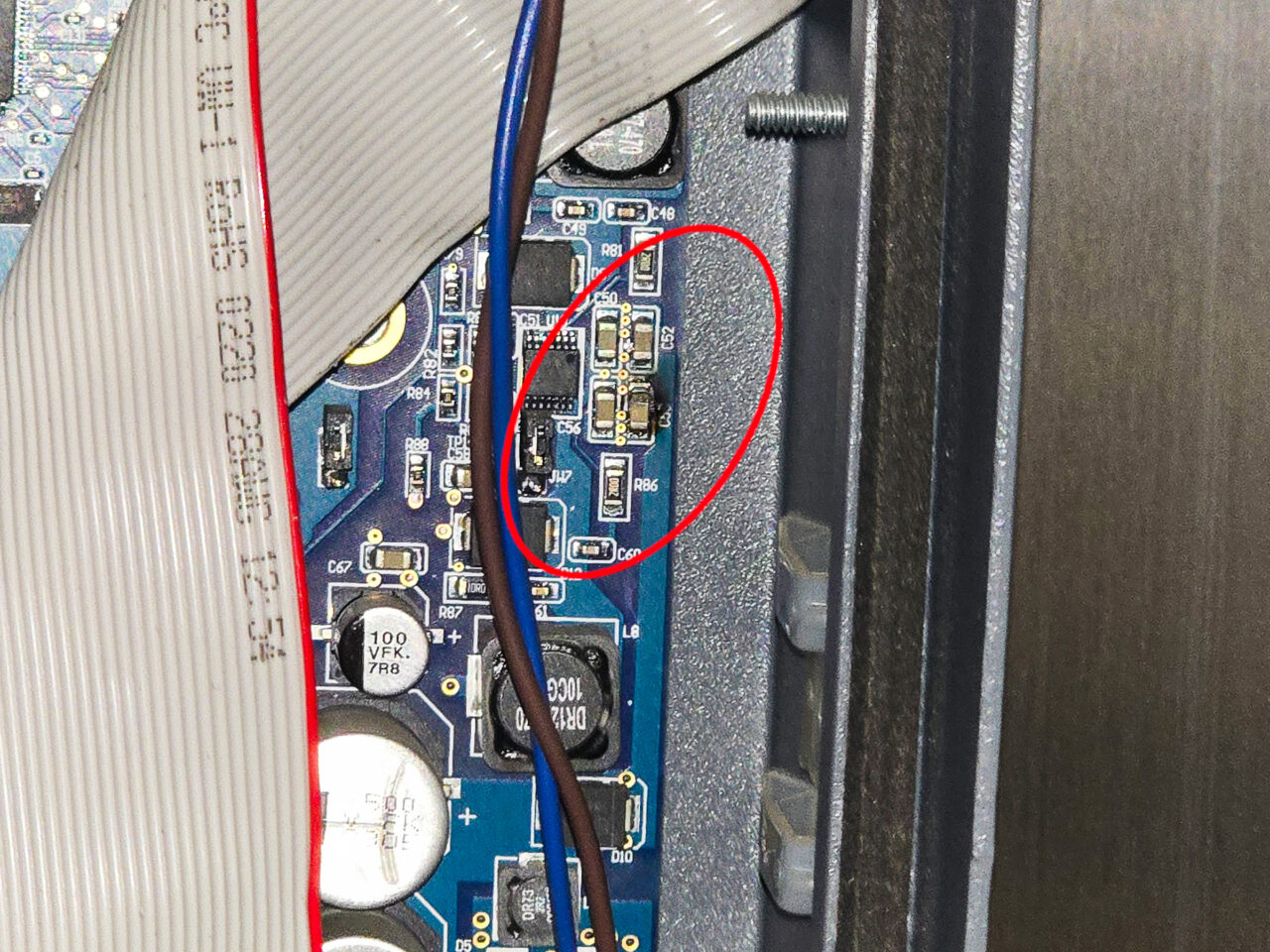

I traced the failure through the power supply, transformer, door strike circuit, phone line, and controller board. The likely failure was in the board’s low-voltage power section, where a small surface-mount capacitor had burned.
Instead of immediately replacing the board and losing the configuration, I powered the damaged board with a current-limited DC bench supply. That let me bring the board up carefully, confirm that the internal 5V and 3.3V logic rails were stable enough to communicate, connect to the TX3 software, and recover the resident names and configuration before replacing the board.
After the new board was installed, I updated the configuration and verified the building functions tied to the panel. That included the postal lock input, door strike operation, grounding, phone-line settings, and relay behaviour. The goal was to leave the system in a known working state, not just swap the failed component.
There was also a call-audio issue where the caller’s voice became quiet after the call connected. I tested microphone gain, speaker level, DTMF sensitivity, and echo-reduction profiles. The issue appeared to be aggravated by sound reflecting inside the panel and around the speaker/microphone assembly, which could cause the echo reduction to clamp down unnecessarily.
I repaired and sealed the broken speaker enclosure and started working on a simple acoustic treatment around the microphone to reduce reflected traffic noise. It was a small repair, but it reflected the same troubleshooting approach as the board recovery: trace the system, protect the important data, verify the handoff, and keep looking when the first fix does not fully solve the user experience.
